FEATURES

‧GPIO for alarm, supports Smart Phone, SD card slot, TV out, Two-way audio

d

EDM (Click for large image)

SPECIFICATIONS (IP/Web cam dual mode)

Video Features
Sensor Resolution
704 x 576
Sensor
1/3 inch Sony Color CCD
Minimum illumination
0.5 Lux
Gain Control
auto
Exposure
auto
White Balance
auto
Focal Length
8.0mm
Aperture
F1.2
Lens view angle

Focus Extent
30cm ~ ∞
Image (Video Setting)
Image Compression
H.264/ Motion JPEG Dual codes
Frame rate
Max 30fps
Video resolution
D1(704x576)/QVGA(352x288)/QQVGA(176x144)
Brightness control
yes
Contrast control
yes
Saturation
yes
Record
yes
zoom

Audio

Internal Microphone (mono)
Audio input
Speaker

output
Speaker output

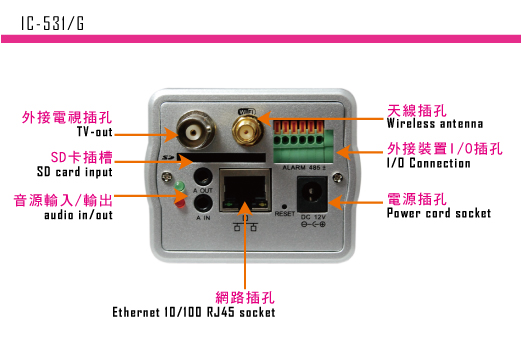

System Hardware
LAN Connector
10 baseT or 100 baseT Fast Ethernet auto negotiation
LED Indicator
Power LED / LAN Activity LED
Power Supply
12VDC 2.0A
MIC Input (mono)
yes
Speaker output
yes
SD Card
yes, support online downloading
IR LED
no
Pan / Tilt
no
Communication Support

communication
10Mbps / 100Mbps auto-sensed

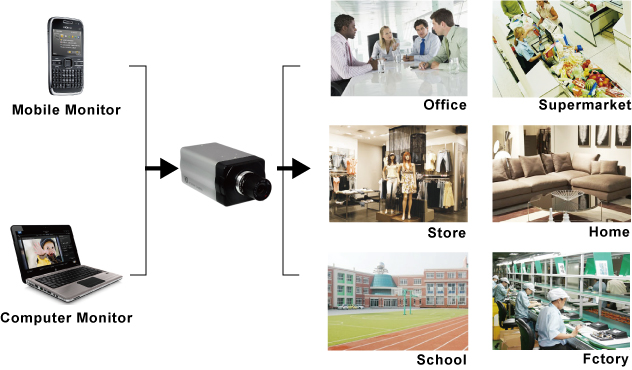

Mobile Surveillance
Yes
communication protocol
TCP/IP、UDP/IP、HTTP、SMTP、FTP、DHCP、DDNS、UPNP、NTP
Wireless models

WEP Encryption
WEP/WPA-PSK/WPA2-PSK
Antenna gain
Yes
Wireless LAN
Yes
Features

Dynamic IP Address
DHCP , PPPoE-Service Name/User ID/User Password
Maximum User
10
Date/Time Setting
yes
Motion Detection
yes
Trigger
Email/FTP/SD card/Alarm Output
low lux

Dynamic IP
Provides Free DDNS
Motorized Pan/Tilt
Up / Down / Right  / Left / Home /  cruise
System

RAM

Flash ROM

Operating environment

Operating temperature
0 - 60℃
Humidity
85% RH
EMI

FCC / CE
FCC / CE
Dimension & Weight

Dimension
118 x 68 x 55 (mm)
Weight
NET. 348g+-10%
