FEATURES

‧Can connect to DVD player
‧Built in Speakers x 2

GIFT BOX

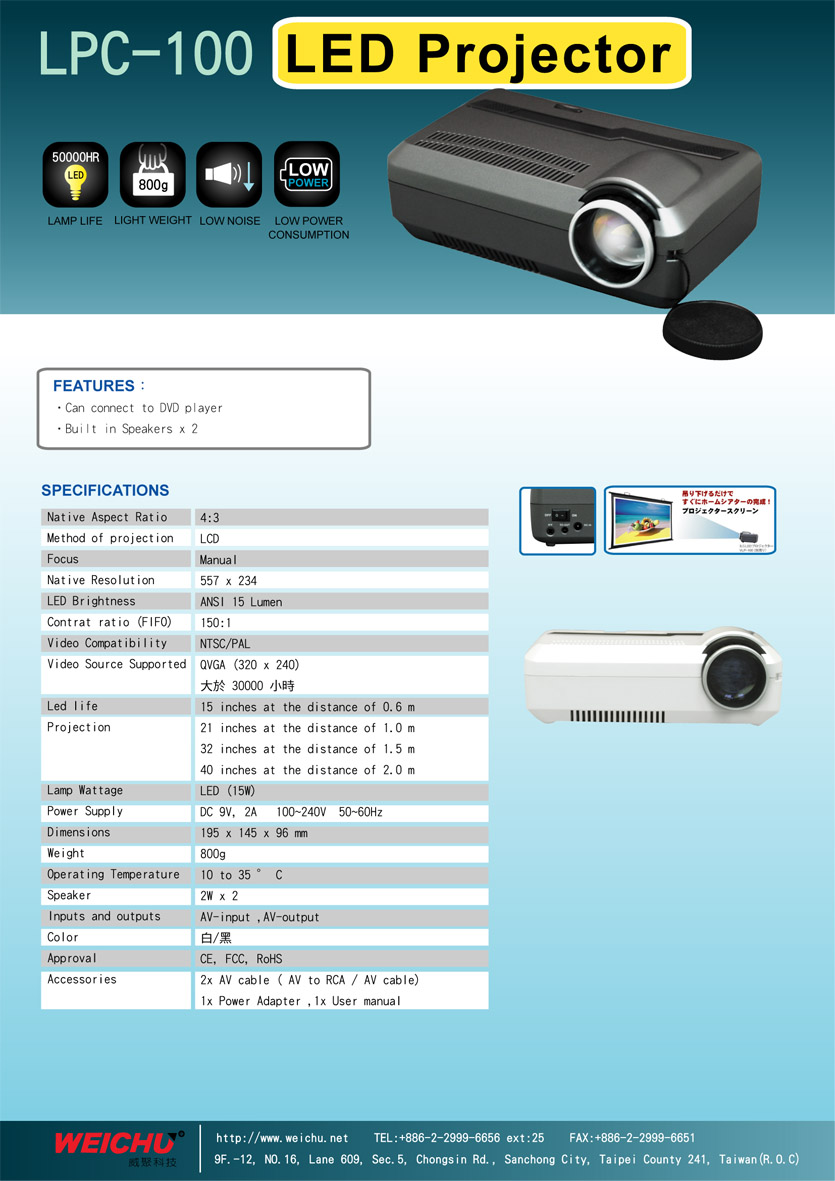

EDM (Click for large image)

SPECIFICATIONS

Native Aspect Ratio
4:3
Method of projection
LCD
Focus
Manual
Native Resolution
557 x 234
LED Brightness
ANSI 15 Lumen
Contrat ratio (FIFO)
150:1
Video Compatibility
NTSC/PAL
Video Source Supported
QVGA (320 x 240)
Led life
Over 30000 hr
Projection
15 inches at the distance of 0.6 m
21 inches at the distance of 1.0 m
32 inches at the distance of 1.5 m
40 inches at the distance of 2.0 m
Lamp Wattage
LED (15W)
Power Supply
DC 9V, 2A                                                    100~240V  50~60Hz
Dimensions
195 x 145 x 96 mm
Weight
800g
Operating Temperature
10 to 35 ° C
Speaker
2W x 2
Inputs and outputs
AV-input
AV-output
Color
白/黑
Approval
CE, FCC, RoHS
Accessories

2x AV cable ( AV to RCA / AV cable)
1x Power Adapter
1x User manual
